Desc:                                                       Stinson P/N                                          Piper P/N        Other P/N

• Fastener                                      Airloc180                                                 484-562
• Pins for Airloc180                                                                                       480-685
• Clevis Pins Cowl Fastener          MS20392-1C25
• AN3-4A Bolt                              AN3-4A                                                    400-438
• Washer                                      AN960-10L(T)                                           407-584
• Wheel Felt Seal                                                                                           751-772
• Fuel Drain Valve                                                                                                                  CCA4850
• Wire Clamp Bolt                     MCS2323-11

Generator O/H parts

• DE Bearing                                954143
• CE Bearing                                954162
•  Brush Set                                 1906984
•  Oil Seal                                    1871382
•

Starter O/H parts

• 1923008 Drive Gear
• 954143 DE Bearing
• 954162 CE Bearing
• 1881838 Brushes
• 1909851 D.E. Seal

Fuel Strainer gaskets:

• 05-11187 from Aircraft Spruce, need 2

Magneto P-Leads

• 11-06871 from Aircraft Spruce, need 2, 36″ long

Tempest Oil Filter

• 08-01269, the long one.

Exhaust Hardware

• Exhaust nuts, 22022 or SA22022 (12)
• Exhaust washers, MS35338-45 (12)

Fuel Strainer Parts

• 462-033 top and bottom gasket (also 462-049, 72302-002, 85012-032)
• 492-022 Fuel strainer drain valve (CCA-1550)

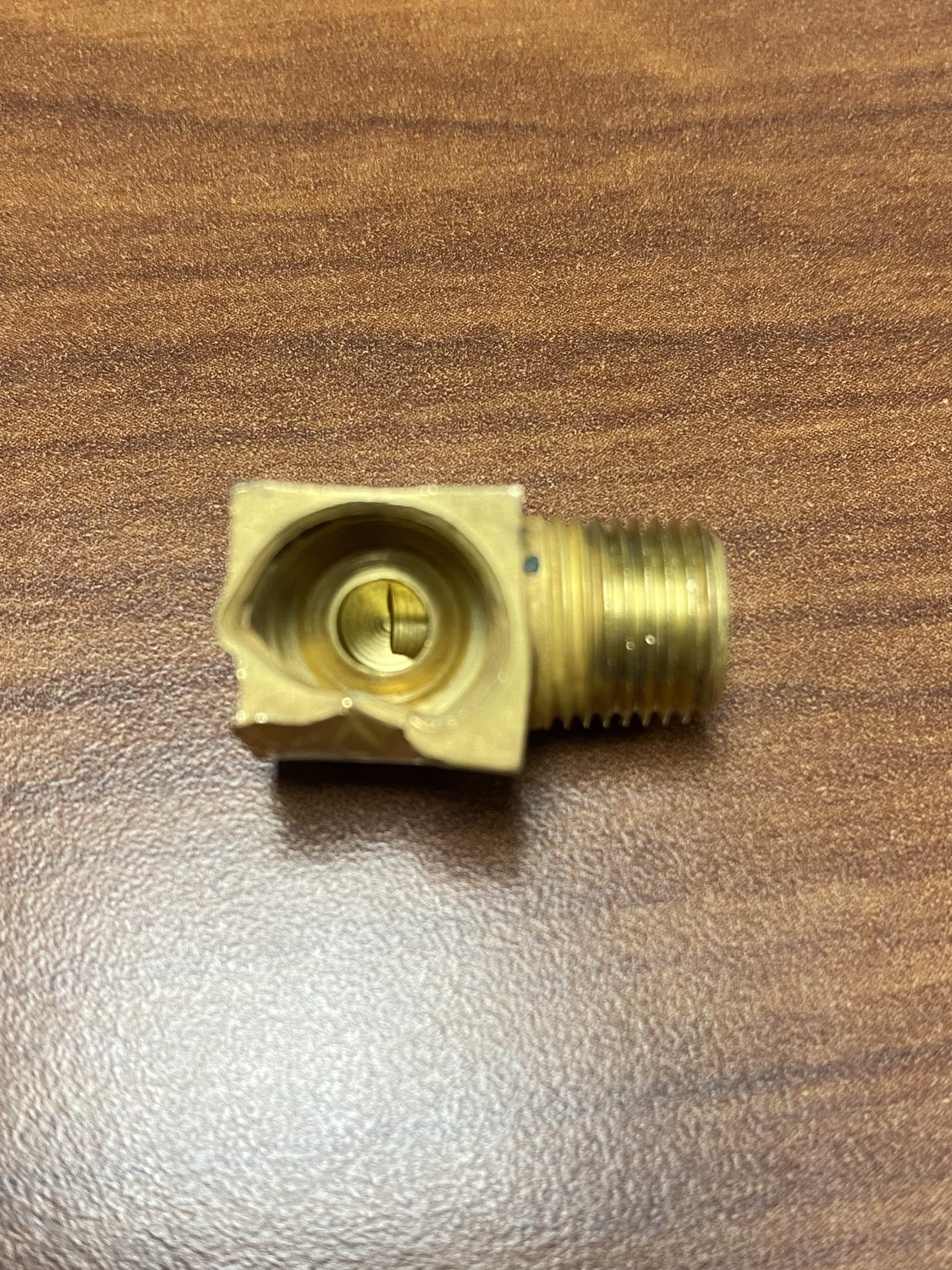

Oil pressure fitting on Franklin Engine

No Franklin part number I could find. I used part number 6JLG8 from Grainger.

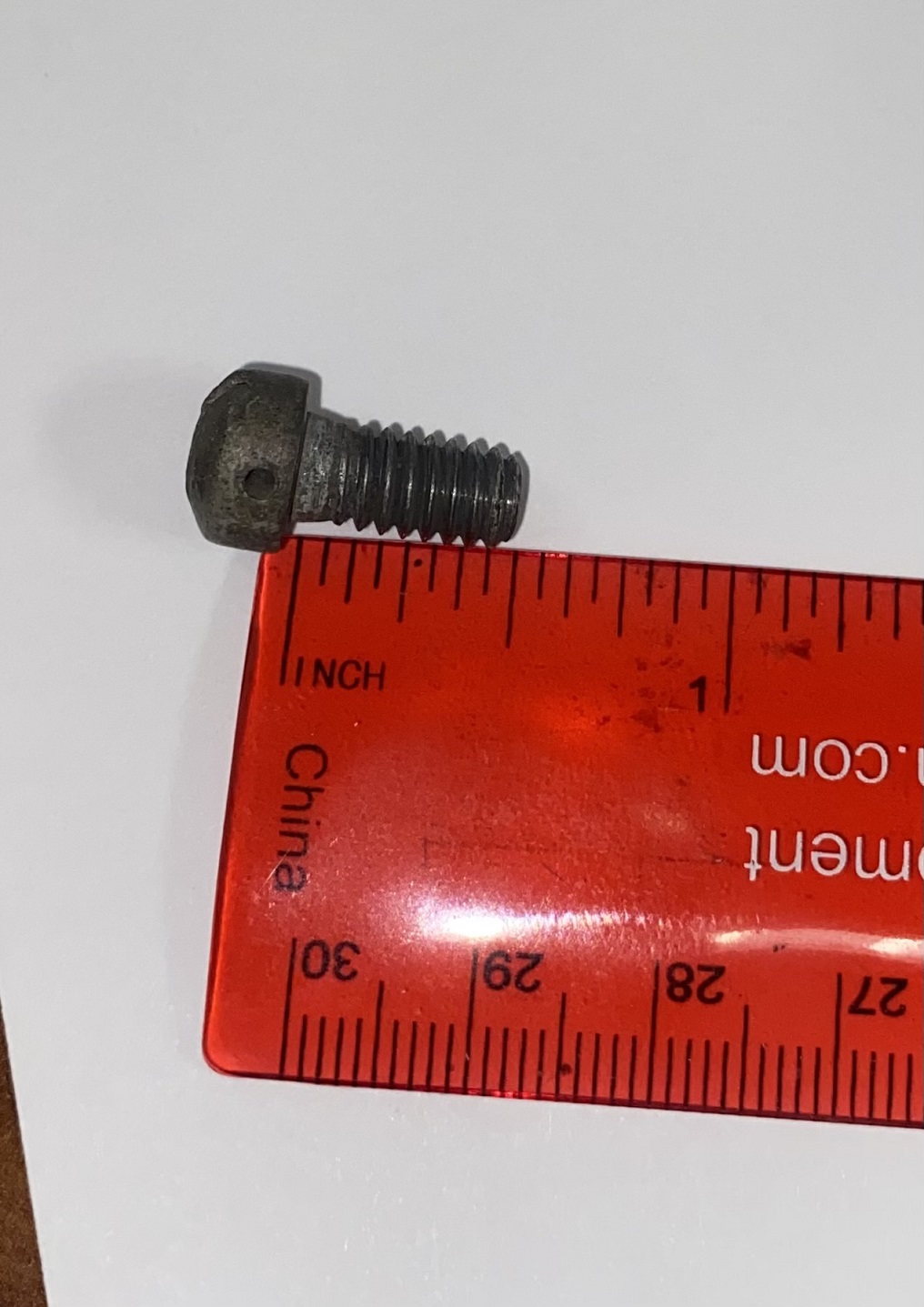

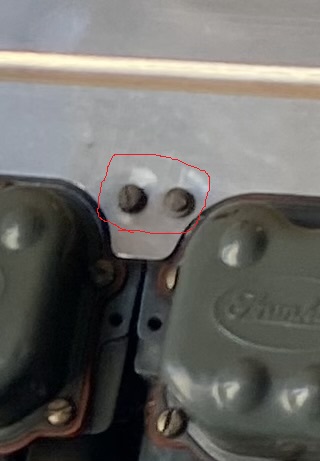

Engine Baffle Screws

They are 1/4-20 x 3/8″, hard to find. There are two part numbers at Aircraft Spruce, STD1925 and 525091, but both are too long and will hit the cylinder fins and bend them. I found some on Amazon that are correct. Make sure you purchase the grade 8 type. Otherwise, there is no part number in the Stinson manual or the Franklin manual for the screws. The lock washers are MS35335-33.

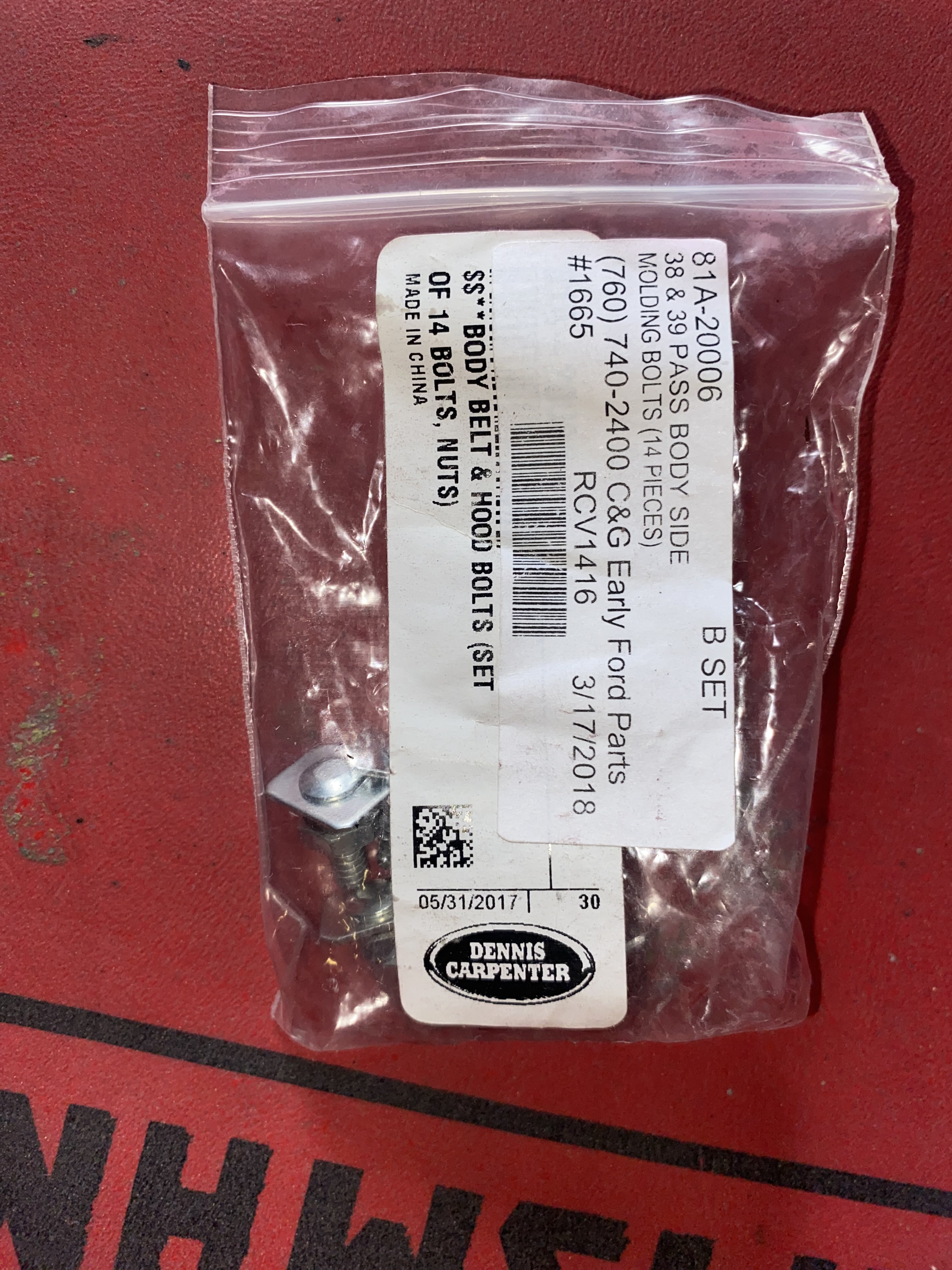

Trim bolts for chrome piece on wheel pants

740-2400 C&G Early Ford Parts. These are from a 38-39 passenger body side panel.

Bolt for mixture control

MCS2323-11

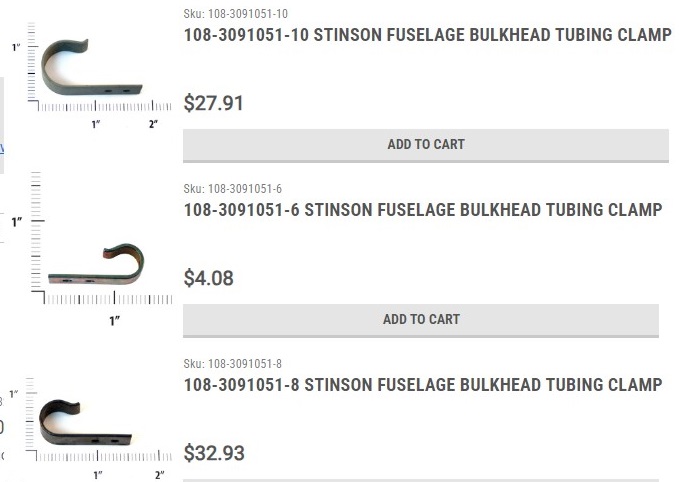

Fuselage Clips

Figure #	Desc	Bolt	Nut	Misc
1-6	Rear Strut	AN5-25A	AN365-524	MS21044N5
1-15	Front Wing Bolt	AN6-23A	AN365-524	MS21044N5
1-16	Rear Wing Bolt	AN5-22A	AN365-624
1-19	Front Strut	AN5-25A	AN365-524	MS21044N5
1-21	Bottom Strut	AN8-21A	AN365-820
	Bolt	AN4-12		Piper 401-312
	Nut		AN364-428	MS21083N4
