Useful information on the Stinson

Just some information to keep handy.

Cabin Cable Lengths

Figure #	Part Number	Name	No. Required	Length
38-1	108-6222501-0	Throttle	1
38-2	108-6221502-1	Mixture	1	42″
38-3	A700-10-0440	Carb Heat	1	58″
38-4	108-6221502-3	Cabin Heat	1
38-5		Parking Brake	1	44″
		Brake Cable		28″

Cable Tensions

Surface	Rigging Load
Aileron	20-25 pounds
Flaps (Up Position)	44-50 pounds
Elevator	100-110 pounds
Elevator Trim Tab	10-20 pounds

Control Surface Travel

Surface	Direction	Degrees	Inches
Aileron	Up	23-25	4.80-5.20
Aileron	Down	11-13	2.33-2.73
Flaps	Intermediate	26-28	4.10-4.40
Flaps	Full Down	32-34	6.00-6.30
Rudder	Left	18 1/2 – 19 1/2	4.77-5.03
Rudder	Right	18 1/2 – 19 1/2	4.77-5.03
Elevator (Flaps Up)	Up	16 1/2 – 17 1/2	4.88-5.18
Elevator (Flaps Up)	Down	19 1/2 – 20 1/2	6.09-6.41
Elevator (Flaps Down)	Up	25-26	7.80-8.10
Elevator (Flaps Down)	Down	19 1/2 – 20 1/2	6.90-6.41
Elevator Trim Tab	Up	14-15	1.13-1.22
Elevator Trim Tab	Down	14-15	1.13-1.22

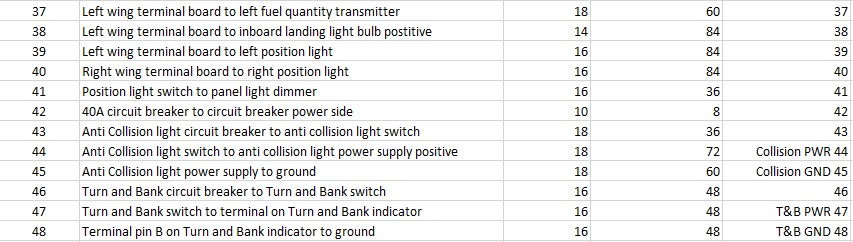

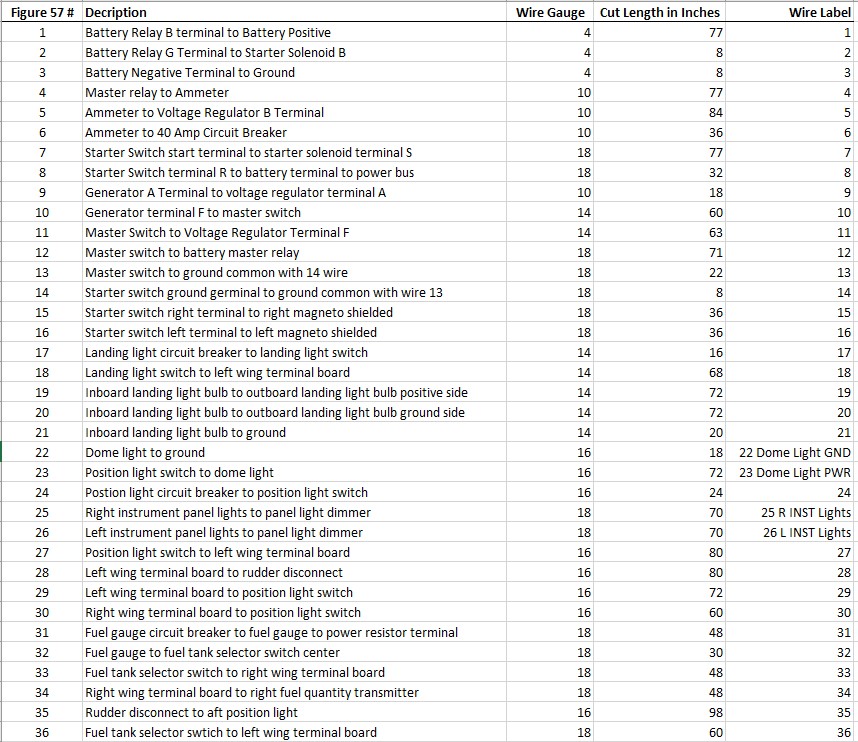

Wiring Information
