The restoration of a 1947 Stinson Station Wagon owned by our grandfather, Fritz Womack.

Fritz with the Stinson in 1967

Stored in the hangar for over 40 years.

Loading it up to take it home

Arrived at home.

Family members helping to strip the fuselage bare.

Sandblasting the fuselage in the back yard.

Primer applied

Waiting for paint to dry

Ready to take it home.

Priming the rudder

Paint applied to the rudder

Elevator half cleaned and ready for primer

Primer applied

Paint applied

Before and After floor

Owner produced replacement flooring.

Floor fitting

Floor heating vent

Cleaned and ready for Primer

Fitting the door

Painted door

Elevator feedthrough

Going back together.

trammeling the wing

Panel before….

Original wiring harness

New wiring harness

Instrument panel

Wiping down the wing

After rib stitching, first coat of filler.

Paint applied

Registration number on the bottom

Door panel fitting

Door knob fitted

Tail wheel

External door handle

Door fitting

Bottom cowl painted

Cousin Doug stopped by to check progress

Loaded up for trip to the hangar

Hangar arrival

Wings on at the hangar.

Rudder and elevators installed

Fueling up to check for leaks…no leaks.

Pushed out of the hangar to clean the hangar

View from the top.

Posted on November 8, 2020 Uncategorized

Wings

One step closer to covering. Cutting my fabric to size.

My co-pilot and helper in the background. Measuring and cutting for the left wing.

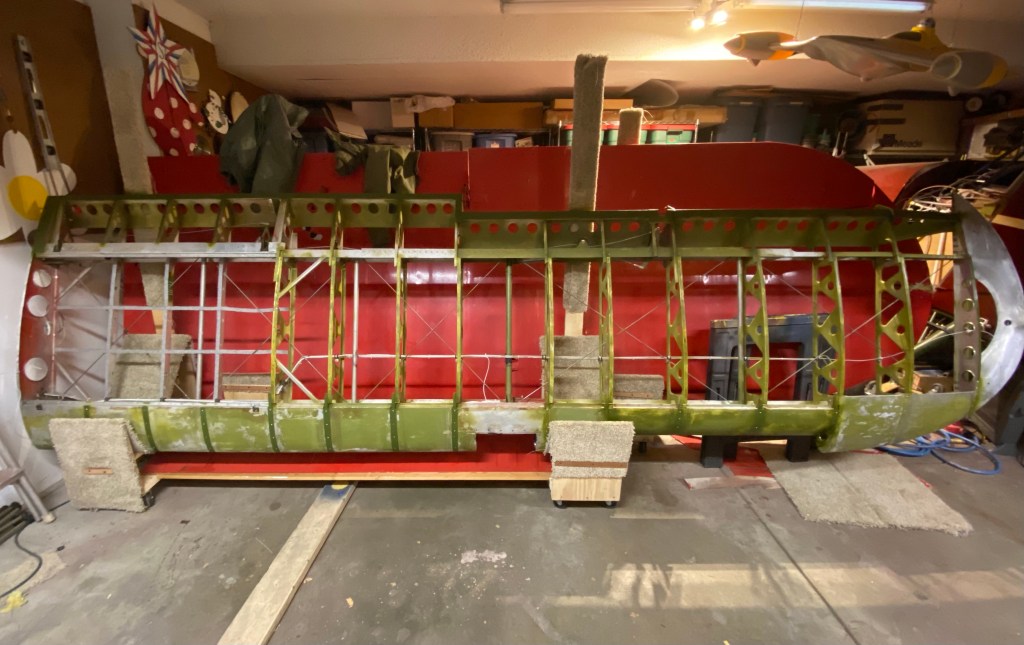

Last minute things before covering. I need to apply E-420 primer to the exposed aluminum surfaces where the fabric will be glued to the wing.

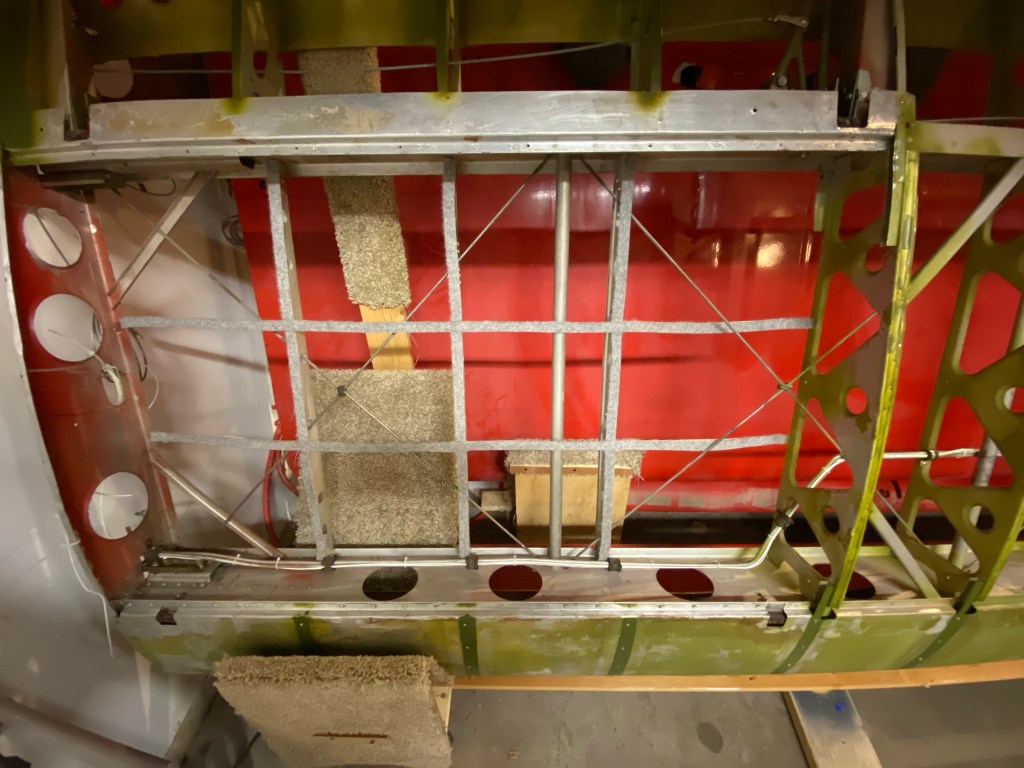

Fuel tank cavity. The support was lined with cork. I used the another method and applied the same felt they use in the PA-22.

2 thoughts on “Wings”

About to get somewhat odorous soon huh? I’m assuming you’ll be applying dope/paint etc. in your garage since weather probably won’t allow painting outside, but, perhaps you can’t really do that anyway, even on a good day.

LikeLike

Ed Fluckey , November 8, 2020 at 10:31 pm
Reply
- Not too smelly. It’s not like the old days of dope and fabric. Today’s fabric uses an adhesive that’s not too bad so I can do it in my garage.

  LikeLike

  jeffrey892 , November 9, 2020 at 6:30 am
