Wingtip

Removed the wingtip and cleaned out the bird nest. Removed some corrosion from the rib and applied some zinc primer.

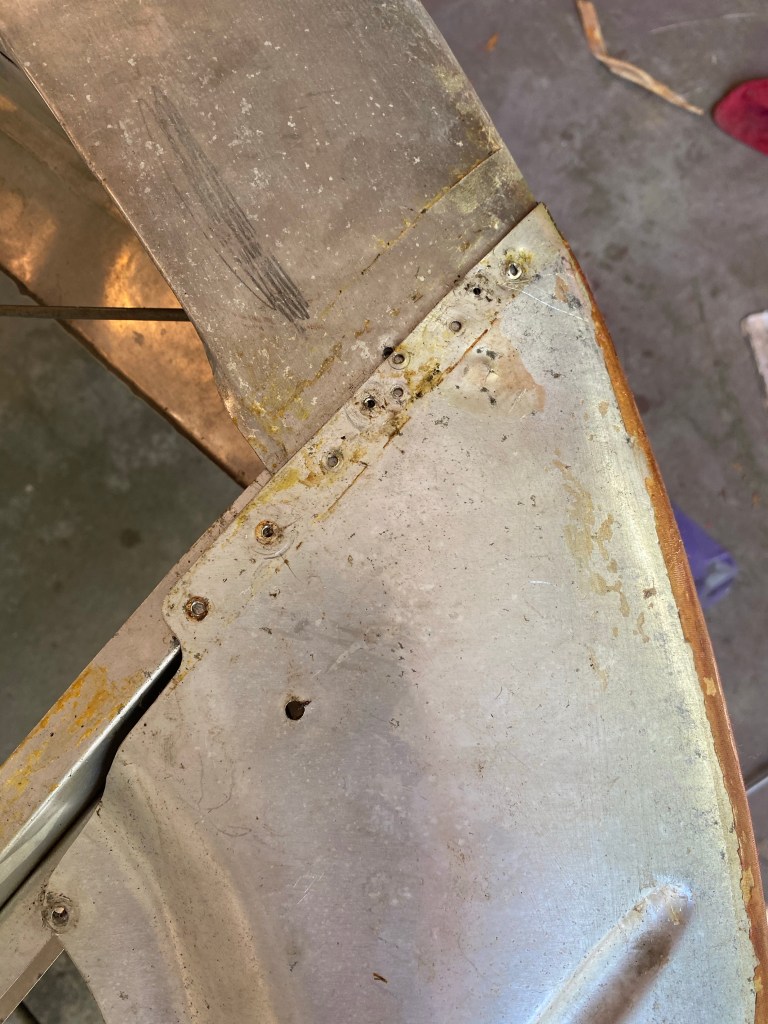

I didn’t get a photo of the rusted PK screws holding on the wingtip. They were tough to remove.

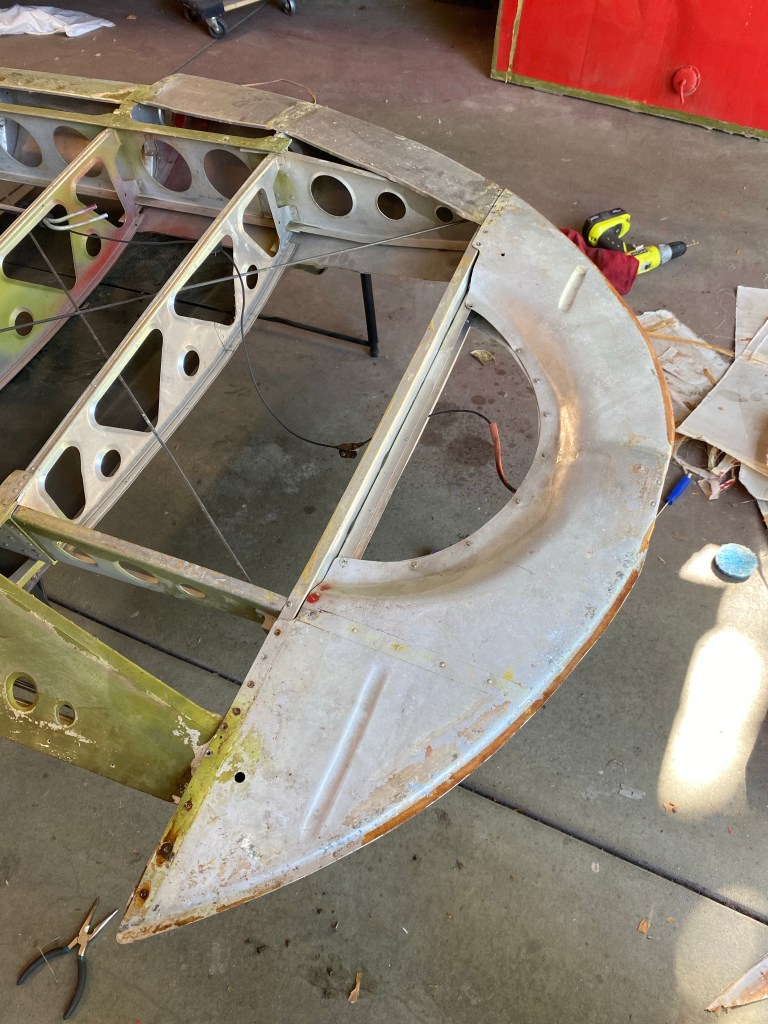

Wingtip

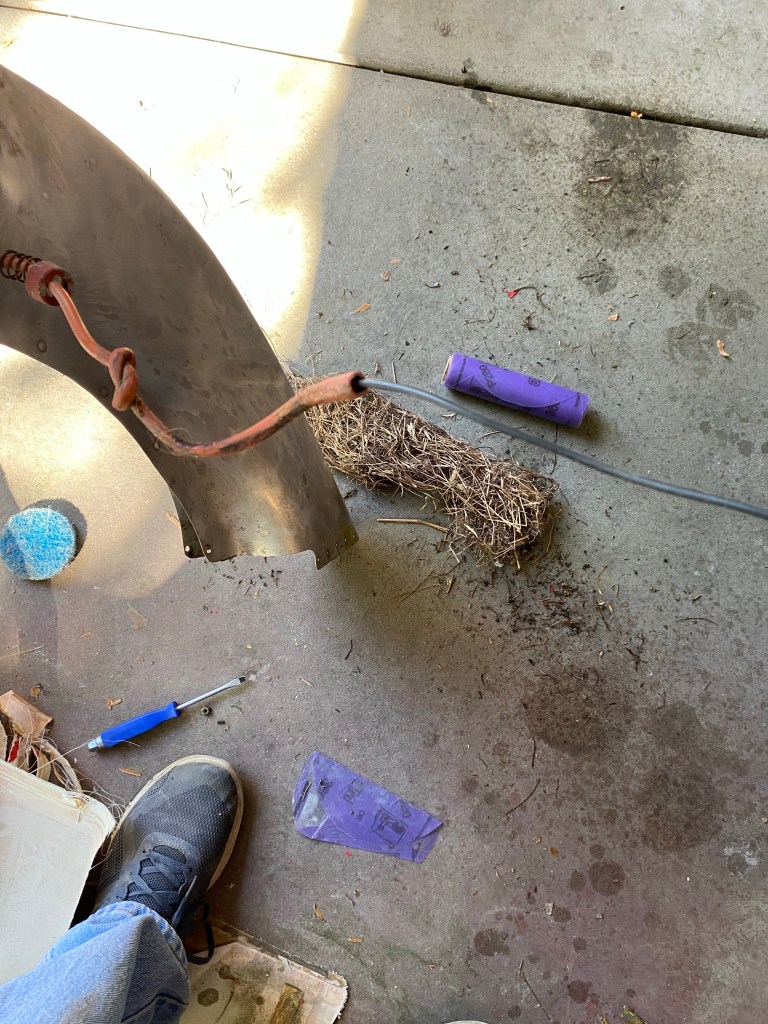

Nest inside.

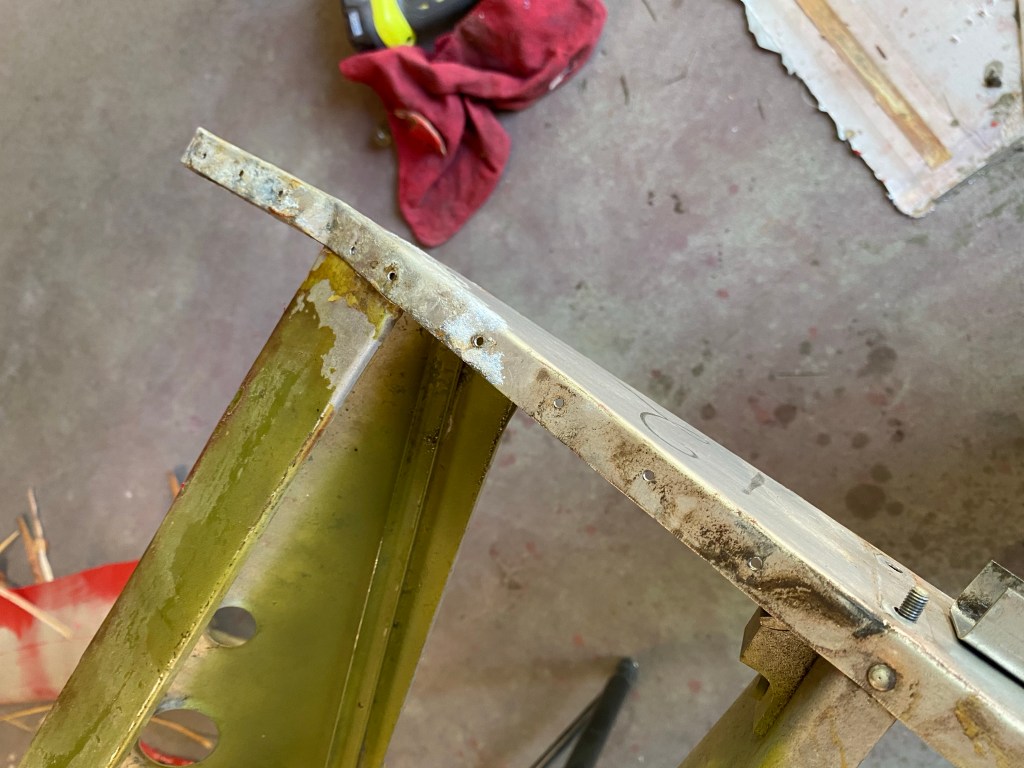

Some corrosion present on the rib.

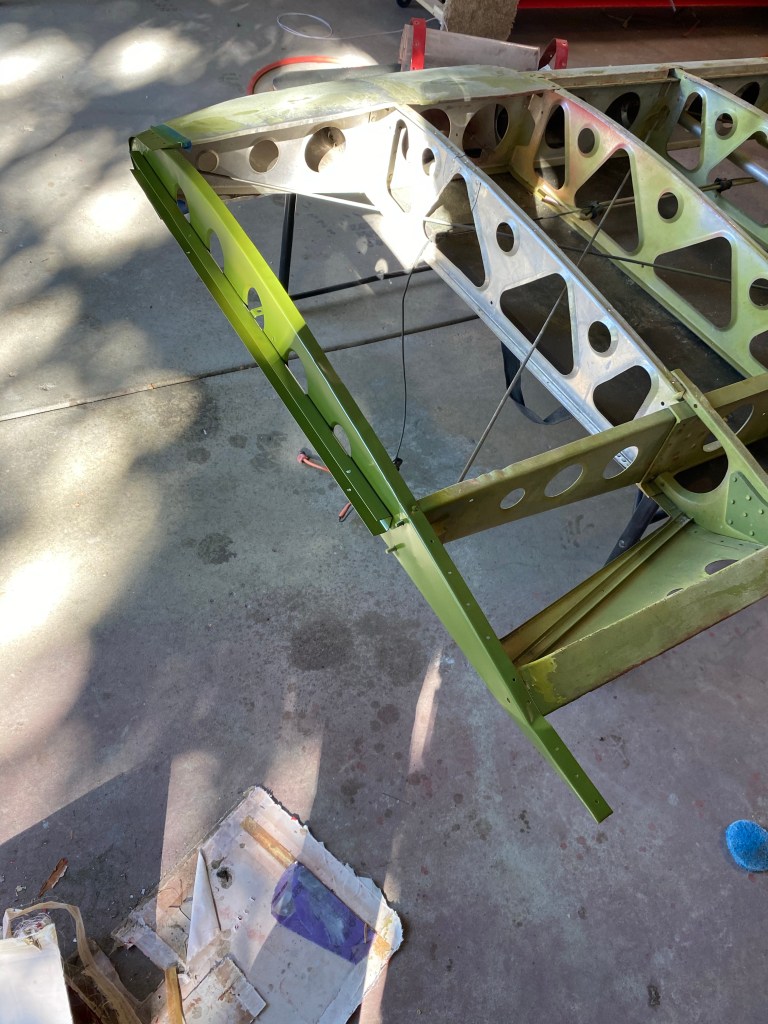

Wingtip rib cleaned and chromated. The bend comes out when you install the tip.

4 thoughts on “Wingtip”

Weird how a bird nest can appear way out at the wing tip, unless a position light was missing I guess. Any signs of mice activity involved? That could be nasty, hopefully the rest of the interior was okay as far as corrosion is concerned.

LikeLike

Ed Fluckey , October 4, 2020 at 10:09 pm
Reply
- No mice. So far minimal surface corrosion on the a few bottom ribs where the P-K screws held on the fabric. So I will apply some corrosion resistant there before covering them back up.

  LikeLike

  jeffrey892 , October 5, 2020 at 9:33 am
  Reply
Have you counted the B-Nests ???? HA! HA! Aunt Carolyn

Sent from Mail for Windows 10

LikeLike

carolyn , October 5, 2020 at 8:38 am
Reply
- So far I found 7 mud dauber nests and one clothes pin! No dead animals or their droppings.

  LikeLike

  jeffrey892 , October 5, 2020 at 9:34 am
