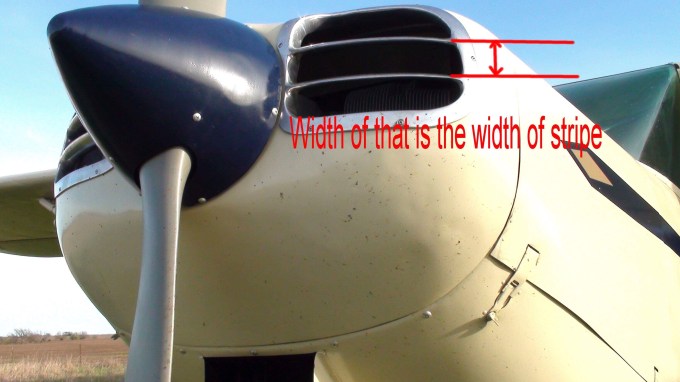

Thanks to input from my friend Gary, my stripe is wrong as I guessed. The factory drawing is wrong. The stripe should start at the center opening of the cowling grille and run down the side to the same point at the tail. The stripe is the same width as the grille slit opening.

Sure glad I noticed it looked wrong and didn’t spray it.
