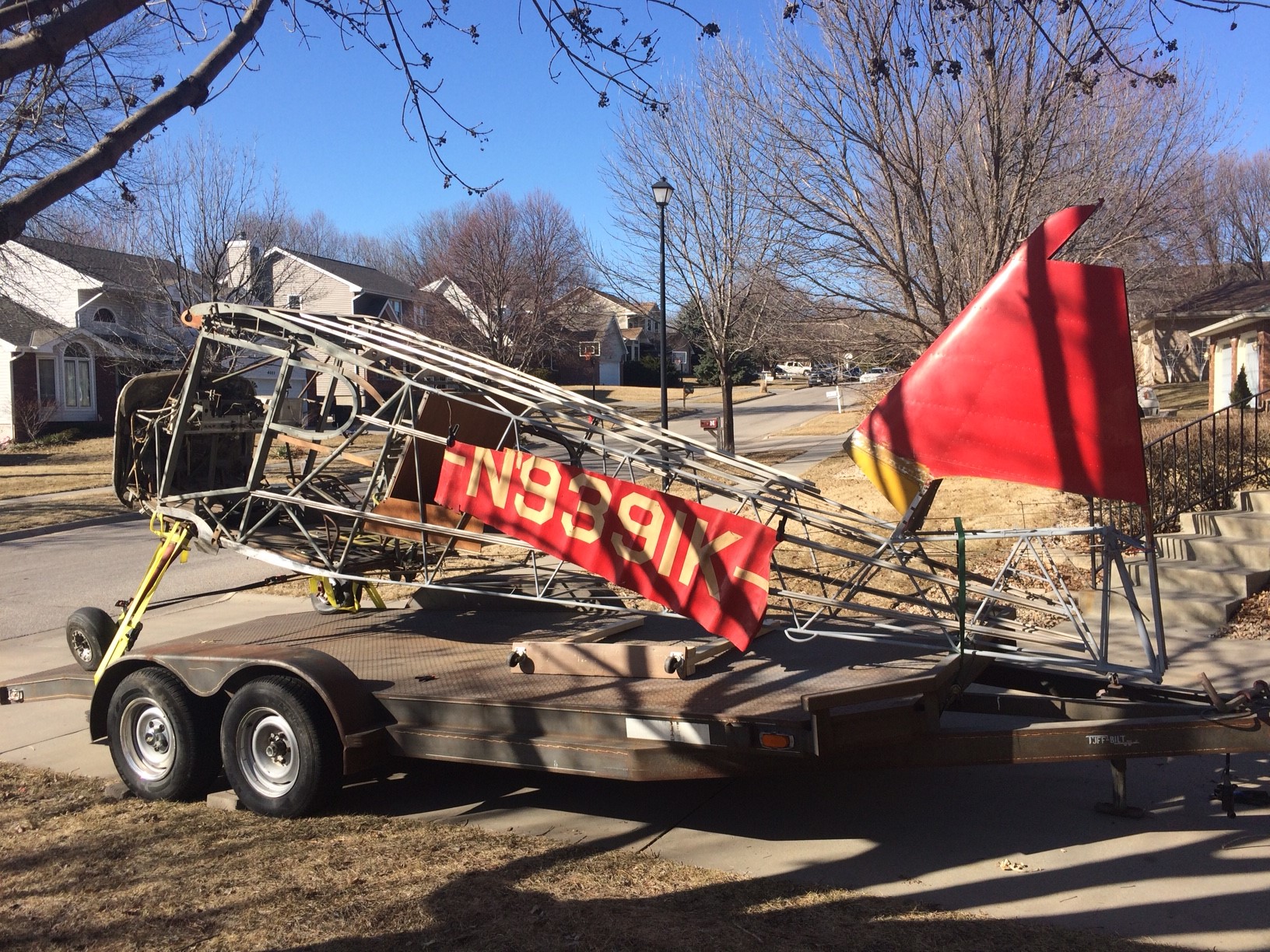

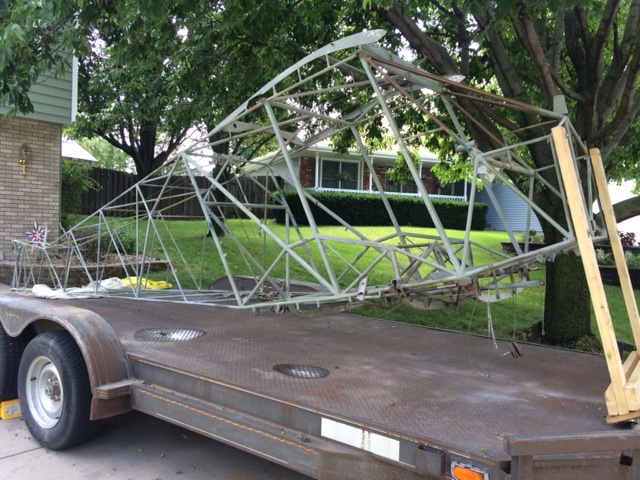

The fuselage is back on the trailer and back to storage for a few weeks while I wait for the painter to get it in his schedule. He said in about three weeks. That gives me a few weeks to work on the things we pulled off this weekend. It’s so much lighter, two people can pick it up and load it on the trailer.
Month: July 2015
Some Work This Morning

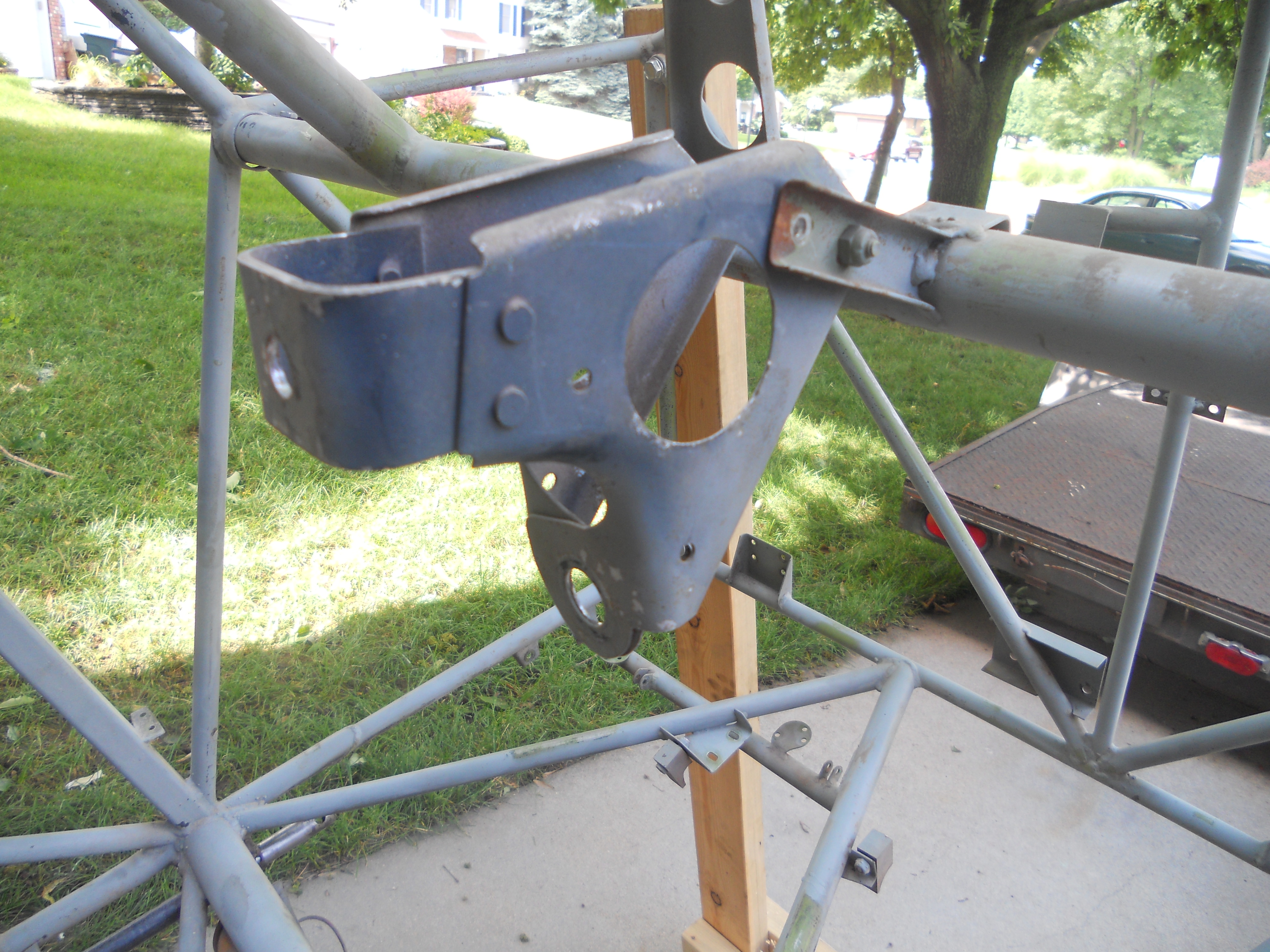

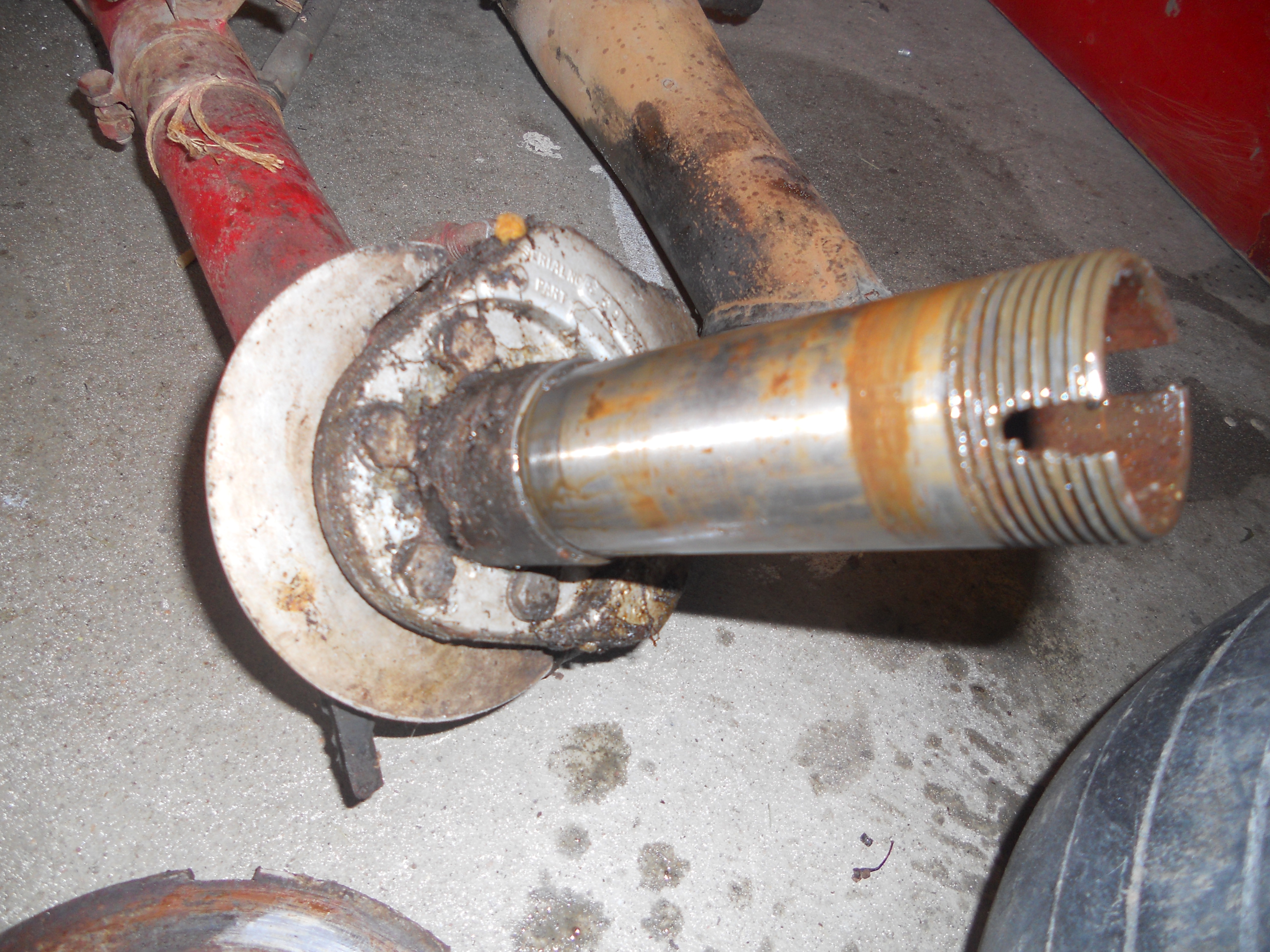

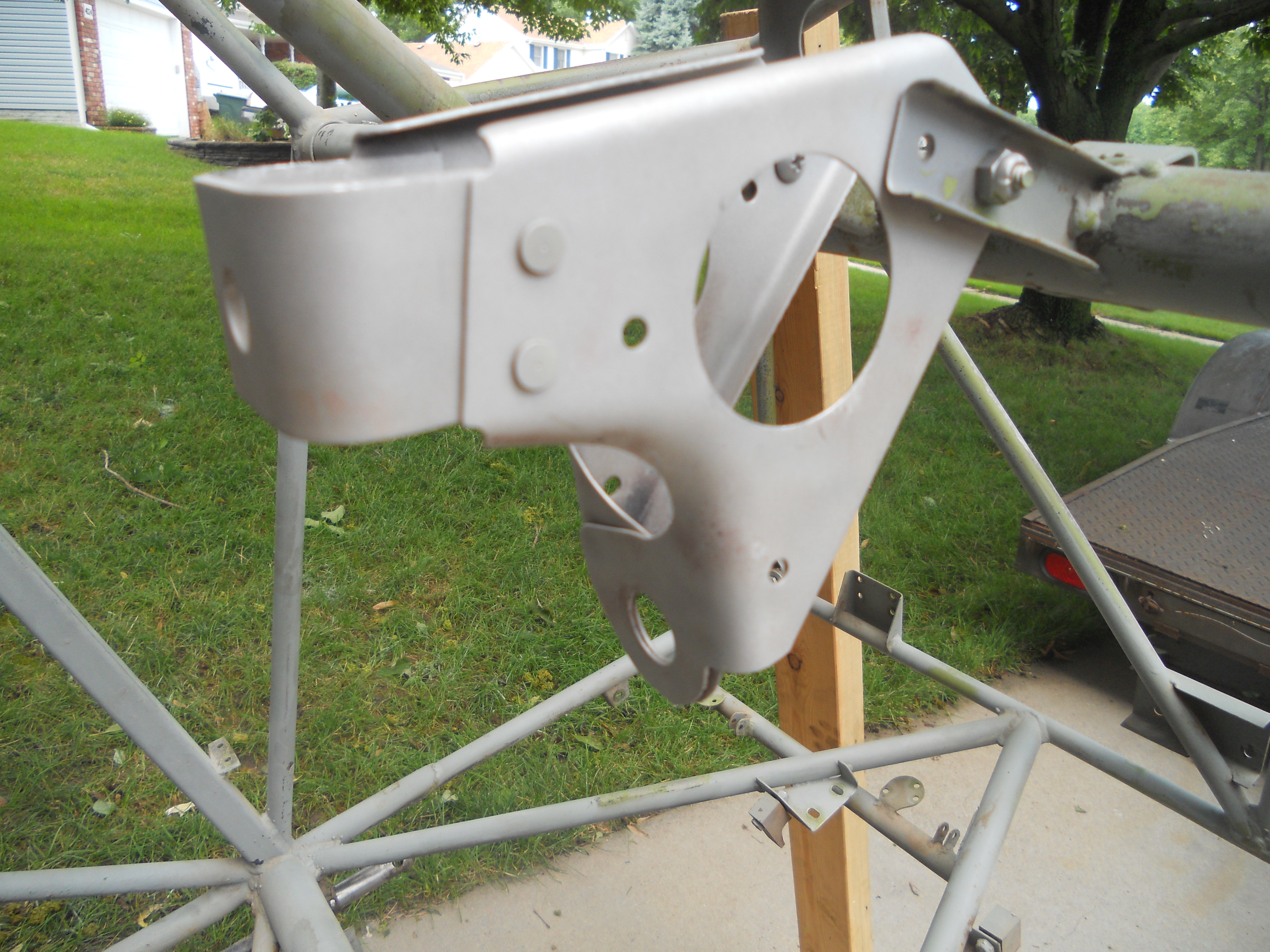

I need to get the landing gear overhauled so I took the wheels off the landing gear this morning. I will get the new tires and tubes installed at this time. I also media blasted a couple spots to see how it would work and it seems to be fine. I may do it to some other spots before I get it painted. See below.
Sanding Party
Control Wheels
Franklin Engine Overhaul
$10,000.00 plus a measly $1,500.00 to replace the light case. Pocket change, right?
The mechanic charges 500.00 tear down and inspection and 2500.00 for reassemble. He also does most of his magna fluxing and zygloing etc. in house. He has a fair charge for that. The cylinder overhaul will run 500.00 x 6 so that 3000.00 additional.
3000.00 labor ( cylinders)
3000.00 Engine overhaul
4000.00 Overhaul Kit
Overhaul kit consists of:
Later ring set for all 6 Pistons, top, middle and oil.
New oil pump assembly
4-new thrust washers
Main bearing set Main,Rod and Cam bearings
Standard or 010 or 020. Any size you need
Overhaul gasket set
6-new rocker shafts
6-new intake and exhaust rockers
6-intake guides
6-exhaust guides
12- new intake and exhaust springs
12-new intake keepers
12-new exhaust keepers
6-outer rocker shaft stands
12-inner rocker shaft stands
12- pushrod tubes
6-exhaust valves
6-new intake valves
6-new upper intake valve washers
6-new upper exhaust washers
2- new magneto gears
2-new magneto shock cushions
